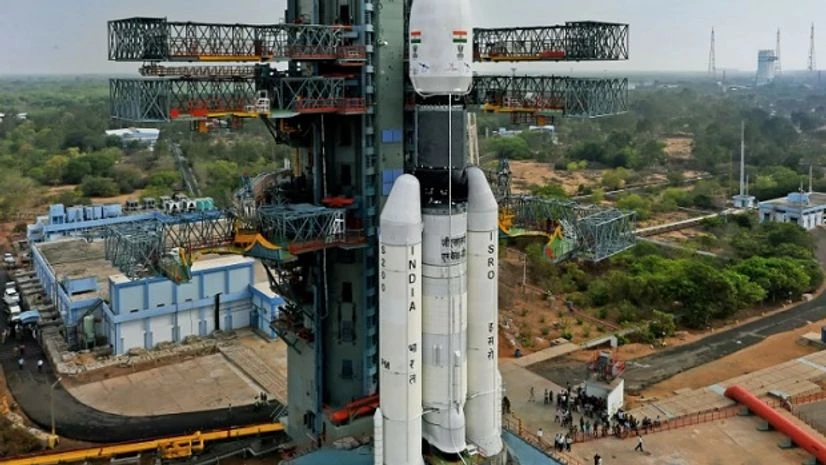

On June 5, India successfully flight-tested its brand new rocket, the 640-tonne Geosynchronous Satellite Launch Vehicle-Mark III (GSLV Mk III) nick-named "Baahubali" by the Telugu media and "fat boy" by officials of Indian Space Research Organisation (ISRO).
The rocket powered by its own cryogenic engine at the upper stage placed communication satellite GSAT-19 weighing 3,136 km or 3.1 tonne.
"The GSLV Mk III rocket weighs 640 tonne with a capacity to carry four-tonne satellite. But when one compares the ratio of the GSLV Mk III's weight to its carrying capacity to geo-transfer orbit (GTO — where communication satellites will be placed) with rockets of other countries, the former ranks low," an industry expert told IANS on the condition of anonymity.
For instance, Japan's H-IIB rocket weighs 531 tonne but can place an eight-tonne rocket in GTO. Similarly, Soyuz, Russia (312 tonne, payload to GTO 3.2 tonne); Falcon, USA (549 tonne, payload to GTO 8.3 tonne) and Proton, Russia (693 tonne, payload to GTO 6.3 tonne); Long March, China (weight 879 tonne, payload to GTO 14 tonne) and Ariane 5, Europe (777 tonne, payload 10.9 tonne).
Sriharikota in Andhra Pradesh is the second best rocket launch site in the world, the expert added.
"From the rocket's propulsion point of view, in foreign rockets, the lower stages (engines at the lower part of the rocket that are fired first to lift the rocket and make it escape earth's gravitational force) are powered by semi-cryogenic or cryogenic engines," Ayyappan said.
The thrust power of semi-cryogenic or cryogenic engines is higher than that of engines fired with solid fuel.
The GSLV Mk III is a three stage/engine rocket. The core of the first stage is fired with solid fuel and its two motors by liquid fuel. The second stage is liquid fuel and the third is the cryogenic engine.
"We use solid fuel in the lower stages as it is cheaper than cryogenic fuel. Even other space agencies are looking to use solid fuel to cut costs," ISRO's Liquid Propulsion Systems Centre Director S Somanath told IANS.
"But other space agencies are looking at solid fuel to reduce cost only after their rockets carry far much heavier satellites than Indian rockets," the space industry expert pointed out.
"Nearly 55-60% of a satellite's weight consists of its chemical fuel. Now the idea is to shift to the electric propulsion of satellites which would reduce their weight," Ayyappan pointed out.
Somanath said, "ISRO started designing GSLV Mk III with four tonne carrying capacity when it was making two-tonne satellites. At the global level also the weight of satellites are coming down. It is very difficult to predict the market trends."
"Electric propulsion will not drastically reduce the weight of satellites to make much of a difference in the rocket's carrying capacity and it cannot replace chemical fuel. The chemical fuel will be used to take the satellite to its space slot and for managing it later electric propulsion would be used," the expert said.
"The Chinese government approved the Long March 5 project sometime mid-2000 to have a rocket with a capacity of 14 tonne. The size of communication satellites will have to go up as there is the limitation on the orbital slots. It all boils down to planning and also predicting the global trends," the expert added.
Citing the example of Japanese H-IIB rocket, Ayyappan said the Japanese use lot of composite materials to make the rocket more efficient and light weight.
"In future, we will also be using more composites in the upper stages instead of metal. Half of the rocket's velocity is achieved only at the upper stage and composite will be the only choice in future," Ayyappan said.
"The specific impulse of our cryogenic engine is also slightly less than that of others," Somanath added while listing out other reasons for GSLV Mk III's lower carrying capacity.
"The aluminium used in some foreign rockets are less dense and their weight is less. We will also use such materials to reduce the weight of our cryogenic stage by 500-600 kg," he said.
Somanath said there are plans to reduce the weight of the electronics by around 150 kg so that every kilogramme of weight reduced increases the payload capacity.
According to him, switching off and restarting of the cryogenic stage in the space would also increase the rocket's capacity.
Experts said India has to realise its semi-cryogenic stage faster and it can not have the luxury of spending a decade or more in developing newer rocket technologies.
"We are planning to realise the semi-cryogenic engine in 2019 and the entire stage by 2021," Somanath said.
